Following on from Part 1 of this post, I will now use display queries to differentiate the COUs using colour codes.
In order to do this, we need to remember the original COU date ranges:
- From 15/12/2009 to 02/02/2010
- From 02/02/2010 to 16/03/2010
- From 16/03/2010 to 27/04/2010
- From 27/04/2010 to 08/06/2010
- From 08/06/2010 to 20/07/2010

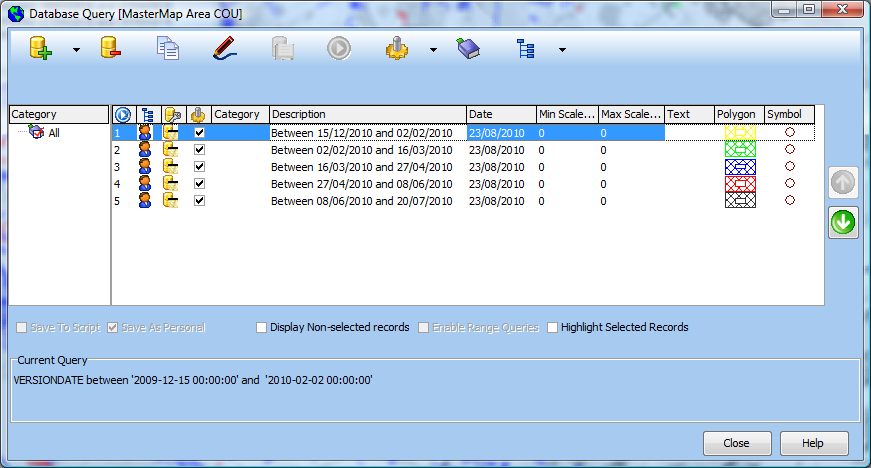

With this information, we can create five display queries that make use of the SQL keyword between, assigning a different colour to each one:
- VERSIONDATE between ‘2009-12-15 00:00:00’ and ‘2010-02-02 00:00:00’
- VERSIONDATE between ‘2010-02-02 00:00:00’ and ‘2010-03-16 00:00:00’
- VERSIONDATE between ‘2010-03-16 00:00:00’ and ‘2010-04-27 00:00:00’
- VERSIONDATE between ‘2010-04-27 00:00:00’ and ‘2010-06-08 00:00:00’
- VERSIONDATE between ‘2010-06-08 00:00:00’ and ‘2010-07-20 00:00:00’
It’s best to use the year-month-date hour:minute:second ISO 8601 format whenever we write queries that operate on date/time columns.

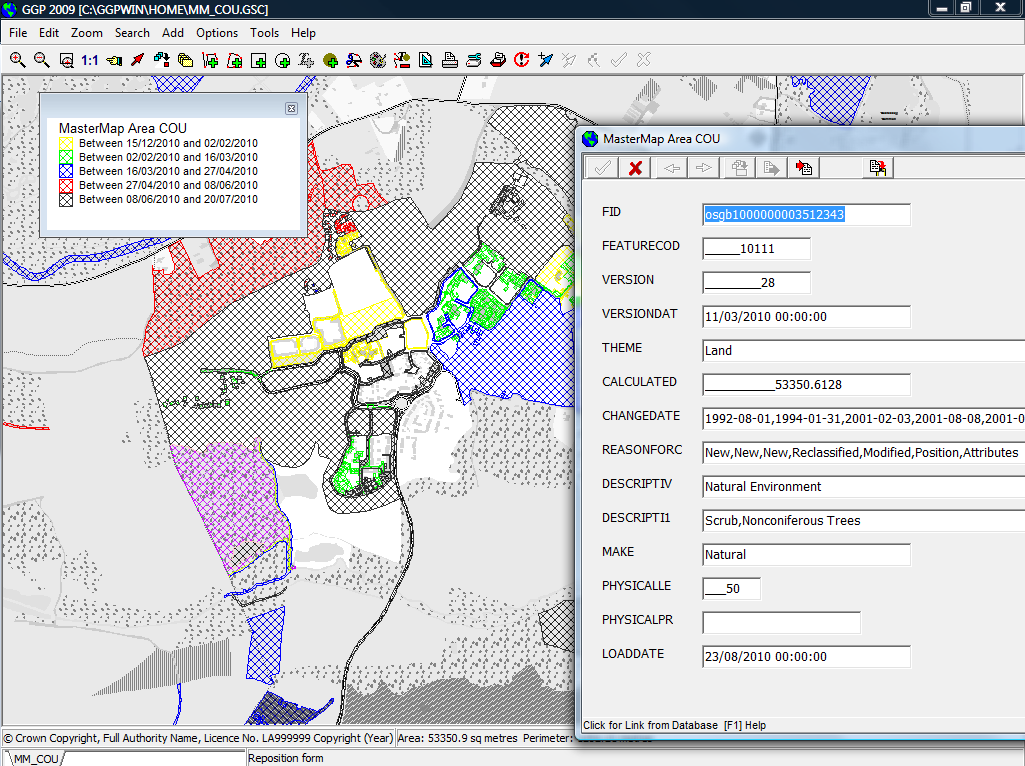

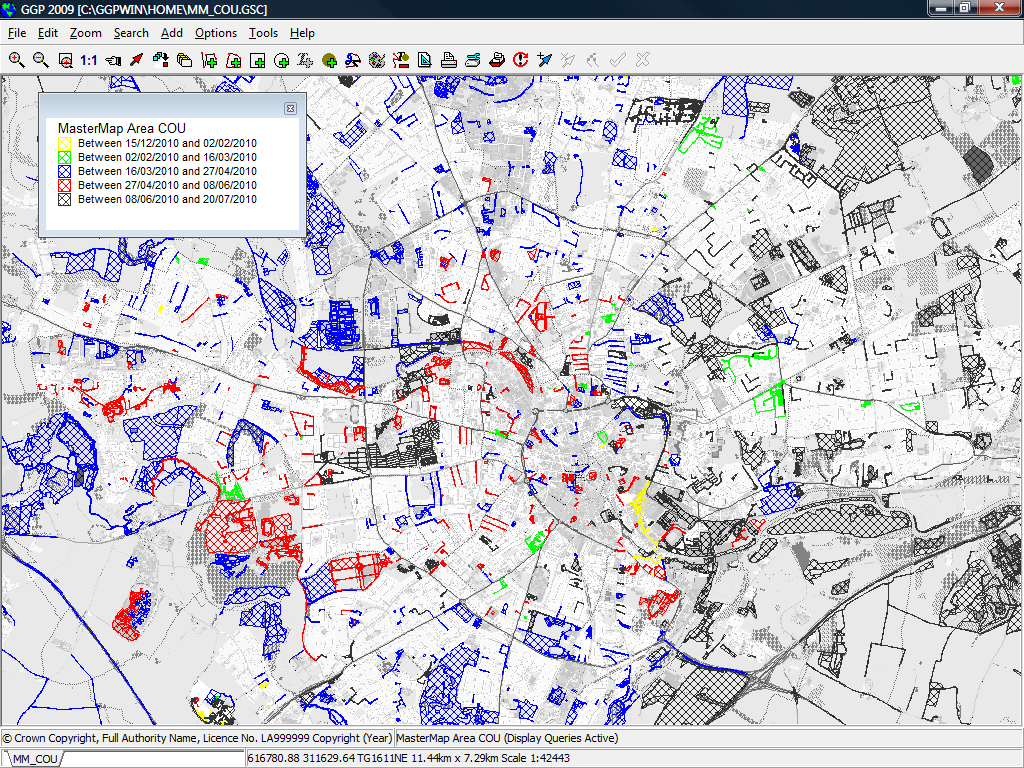

The results show clearly which areas were updated, and when:
